Voltmeter & Ammeter Kit

Normal price: US$660.00
US$620.00
Online savings: US$40.00 (6%)
VA200K
+

VA200K Voltmeter and Ammeter Kit

The VA200 is an advanced, next generation voltmeter and ammeter combinational instrument.

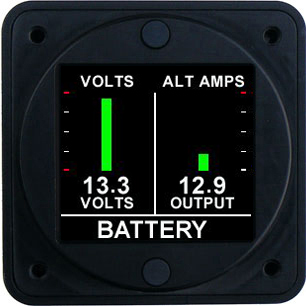

The ammeter portion of this instrument may be used as either a normal ammeter, indicating both charge and discharge current or a loadmeter, displaying the total load on the alternator/generator.

Functional displays include:

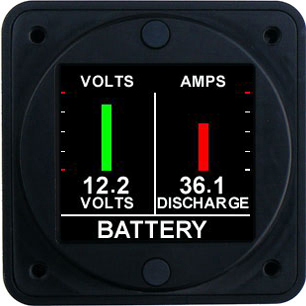

  • Real-Time analog data depiction and digital value display of bus voltage and current

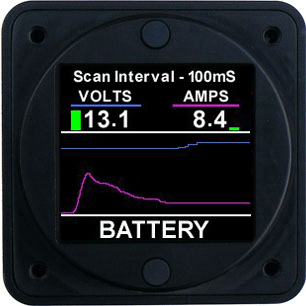

  • Graphical trend display of both bus voltage and current data

The VA200K is STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

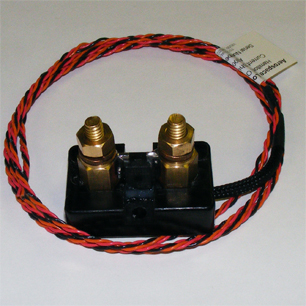

This kit includes an A200-HAS Hall Effect Current Shunt and all installation hardware.


Certification / Compliance
Canadian STC
FAA STC
Certified as primary replacement

Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX

Software
DO-178B

DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
Voltage: 6V to 36V
Current: 0V to 3.0V

Display Units
Voltmeter: 6.0V to 36.0V
Current: -100A to + 100A

Accuracy
Current: +/- 0.1A
Voltmeter: +/- 0.1V

Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Software Functionality

Primary: Voltmeter and ammeter
Trend Graph: Graphic display of bus voltage and current charge or discharge

Interface Connector
DB-25

Dimensions
2.45” X 2.45” X 0.9”

Weight (excluding harness)
4.05 oz

Finish
Black anodized 6061 aluminum

Product Manual - Rev 5 (VA200X_Manual_Rev_1.6.pdf, 357 Kb) [Download]

Installation Instructions - Hall Effect Shunt (A200-HAS_Installation_Instructions_-_Rev_1.3.pdf, 158 Kb) [Download]
