Six Cylinder EGT / CHT Combination Kit

Normal price: US$2,290.00
Online savings: US$137.00 (6%)

Six Cylinder EGT and CHT Combination Kit with Probes

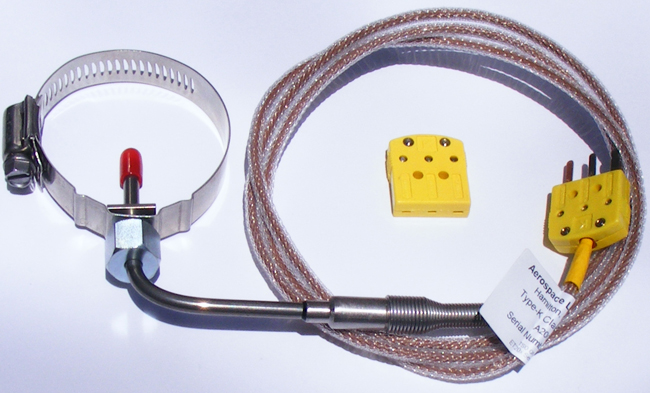

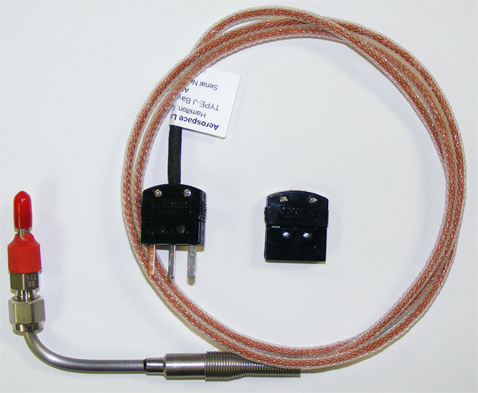

The ECT2046 is a full color EGT and CHT combination instrument that provides simultaneous, real-time display of all six cylinders. This kit includes six Type-K ungrounded, EGT thermocouple probes of your choice, six Type-J ungrounded, CHT thermocouple probes of your choice and , all connectors and installation hardware.

Both Cylinder head and Exhaust gas temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/- 1%) instrument. Functional displays include:

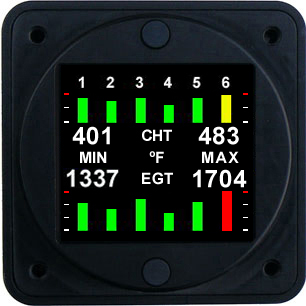

  • Real-time six cylinder temperature display

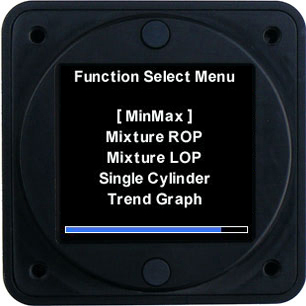

  • Menu select option for fast selection of display type

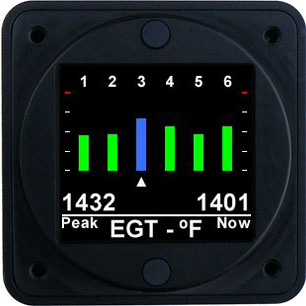

  • Automated rich-of-peak (ROP) leaning function for EGT

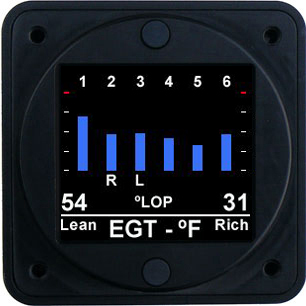

  • Automated lean-of-peak (LOP) leaning function for EGT
  • Automated shock cooling monitoring for CHT

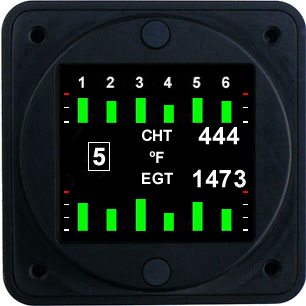

  • Single cylinder temperature monitoring while retaining graphic indications for all cylinders (Both CHT and EGT simultaneously)

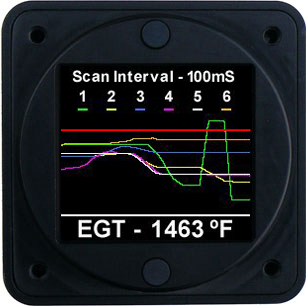

  • Graphic trend analysis and viewing of all cylinders simultaneously (selectable for EGT or CHT)

The ECT2046 kits are TSO'd and STC'd as a primary replacement instruments under all flight conditions (day/night VFR and IFR).

Certification / Compliance
TSO C43c
Canadian STC
Certified as primary replacement



DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV

Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC

Signal Input
CHT - 0.0V to 20.255mV, ungrounded Type-J thermocouple
EGT - 0.0V to 44.866mV, ungrounded Type-K thermocouple

Display Temperature Range
CHT - 100ºF to 700ºF EGT - 200ºF to 2000ºF

Temperature SAE AS8005 Class IIa +/- 1% FS

Display Units
ºF or ºC, user selectable

Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control

Annunciator Output
100mA sink with reverse EMF protection

Interface Connector

Software Functionality

Primary: All cylinders with Min and Max temperatures
Menu: Function selection
ROP Leaning:Lean engine rich-of-peak (EGT)
LOP Leaning:Lean engine lean-of-peak (EGT)
Shock Cooling:User selectable rate (CHT)
Single Cylinder: Display all cylinders, but monitor one (Both CHT and EGT simultaneously)
Trend Graph:Graphic display of temperatures (CHT or EGT)

2.45” X 2.45” X 0.9”

Weight (excluding harness and probes)
4.05 oz

Black anodized 6061 aluminum

Product Manual - Rev 5 (ECT2046XXX_Manual_Rev_1.3.pdf, 538 Kb) [Download]

EGT Clamp Probe Installation Manual Rev 1.1 (A200-TEC_Installation_Instructions_-_Rev_1.1.pdf, 13 Kb) [Download]

EGT Bayonet Probe Installation Manual Rev 1.1 (A200-TEB_Installation_Instructions_-_Rev_1.1.pdf, 12 Kb) [Download]

CHT Ring Probe Installation Manual Rev 1.1 (A200-TCR_Installation_Instructions_-_Rev_1.1.pdf, 11 Kb) [Download]

CHT Bayonet Probe Installation Manual Rev 1.1 (A200-TCB_Installation_Instructions_-_Rev_1.1.pdf, 11 Kb) [Download]
