CO200K Clock & Outside Air Temperature Kit
The CO200 is an advanced, next generation airborne timepiece. Using one of the world's most accurate digital timebases it will provide precise time for years to come.
Outside air temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005 for a Class IIa (+/- 1%) instrument. Functional displays include:

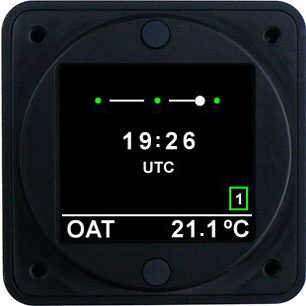

- UTC Time

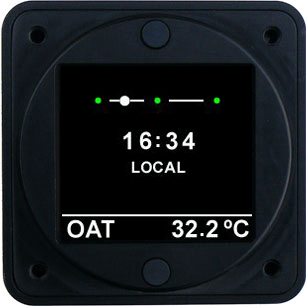

- Local Time

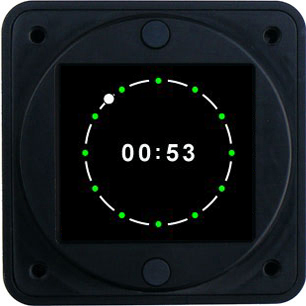

- Chronograph

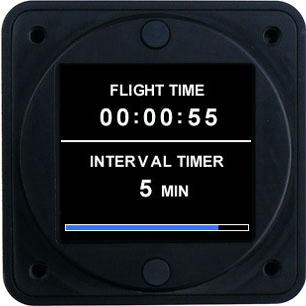

- Flight Time and Interval Timer
The CO200 is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
This kit includes both CO200 instrument and A200-TSA outside air temperature sensor.
Certification / Compliance
TSO C43c
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature 0.0V to 3.0V
Display
Temperature -58ºF to 248ºF
Various time related
Accuracy
Temperature SAE AS8005 Class IIa +/- 1% FS
Clock 3.5ppm / < 2minutes/year
Display Units
ºF or ºC, user selectable
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Interface Connector
DB-25
Software Functionality
Primary Time 12/24 hour mode, UTC and Local
Chronograph 99 minutes 59 seconds
Flight Timer 99 hours 59 minutes 59 seconds
Interval Timer Set for multiples of 1 minute
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
