OT202VK Dual Oil Temperature & Voltmeter Kit
The OT202V is an advanced, next generation dual oil temperature and voltmeter combinational instrument.
Oil temperature functionality is TSO'd and meets the temperature accuracy requirements of SAE AS8005.
Functional displays include:
- Real-Time analog data depiction and digital value display for both left and right engines
- Left and right oil temperature with voltmeter display
- Graphical trend display of both left and right oil temperature data
The OT202VK is TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).
This kit includes two A200-TSO oil temperature sensors and all installation hardware.
Certification / Compliance
TSO C43c
Canadian STC
FAA STC
Certified as primary replacement
Environmental
DO-160F A1CAASXXXXXXZBXXBBBCSBA1C11XXAX
Software
DO-178B
DC Power Source
Input voltage 6 to 36 VDC
Power consumption 100mA
Load dump tolerance +60V
Direct spike tolerance +/- 60V
Cable spike tolerance > +/- 1KV
Operating Temperature
Constant operating -15ºC to +55ºC
Short term operating (1hr) -40ºC to +70ºC
Storage -55ºC to +85ºC
Signal Input
Temperature 0.5V to 3.0V
Display Units
Oil Temperature: 32ºF - 302ºF, ºF or ºC, user selectable
Voltmeter: 6.0V to 36V
Accuracy
Oil Temperature: AS8005 +/- 1% FS
Voltmeter: +/- 0.1V
Display
Sunlight readable LCD
80º Viewing angle from all directions
Internal and external intensity control
Annunciator Output
100mA sink with reverse EMF protection
Software Functionality

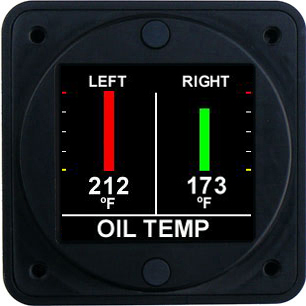

| Primary Option 1: | Left and right oil temperature |

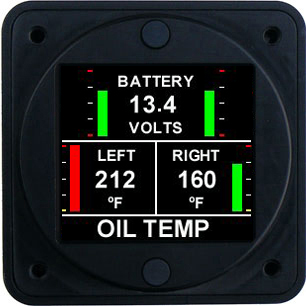

| Primary Option 2: | Voltmeter, left and right oil temperature |

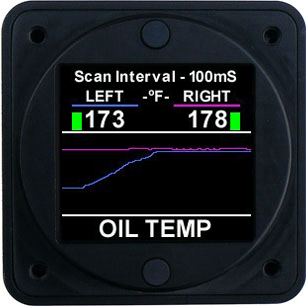

| Trend Graph: | Graphic display of left and right temperature |
Interface Connector
DB-25
Dimensions
2.45” X 2.45” X 0.9”
Weight (excluding harness)
4.05 oz
Finish
Black anodized 6061 aluminum
