A200-TSO Oil Temperature Sensor

Normal price: US$219.00
Online savings: US$13.00 (6%)

The A200-TSO is a monolithic temperature sensor with on-chip signal conditioning and an operating temperature of -50°C to 150°C. It has an accuracy of +/- 0.5°C over the full operating range.

The output voltage is proportional to the temperature x the supply voltage (ratiometric). The output swings from 0.25 V at -50°C to +4.75 V at +150°C using a single +5.0 V supply.

The temperature transfer function is:
VOUT = (V+/5 V) — [1.375 V +(22.5 mV/°C) — TA]

Power requirements (when used with any 200 Series instrument) are 5V / 1mA.

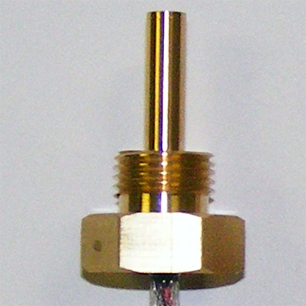

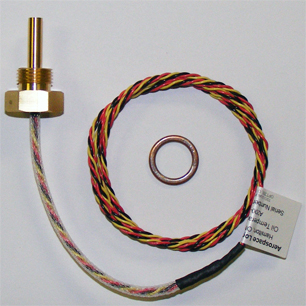

The sensor has a 5/8-18 threaded body and includes a copper crush washer.

Supplied with a 48" color coded cable.

When installed in accordance with the approved instructions and as part of a qualified instrument system, this temperature sensor is STC'd as a primary replacement.

For use with the following products:

  • OT202XX
  • OPT200XX

Installation Instructions - Oil Temperature Sensor (A200-TSO_Installation_Instructions_-_Rev_1.1.pdf, 11 Kb) [Download]
